H2O PLUS WATER TREATMENT COMPANY was established in 1996 specializing in marketing home, commercial, and industrial water treatment equipments, accessories, and facilities. Our core competency is customer satisfaction by providing complete turnkey systems rendering technical designs, plant layouts, and sizing of equipment from installation to turnover of your bottling plant.
Bottling
Fluidmech
Fluidmech Equipment was incorporated in 1978. They have become a leading manufacturer and supplier of Rinsing, Filling, Capping, Labelling and Packaging machines in Malaysia.
They served wide range of industries, including Food and Beverages, Toiletries, Household Chemical, Agrochemical, Petroleum-based Lubricant and others. Their machines are exported to countries like Singapore, Indonesia, Myanmar, Cambodia, China, Australia, Nigeria, United Kingdom, West Africa, Jordan and Vietnam.
Filling
Automatic Linear 6-Heads Pressure Filling Machine
The machine is equipped with 6 specially designed stainless steel nozzles. These nozzles are mounted on an anodized aluminium plate with a long slot hole for the adjustment of the center distance of the nozzles to suit a wide range of bottles. The filling principle is by a pump, transferring the product through a specially designed nozzle into the bottle to be filled.
Application
- Most suitable for soft bottles of rectangular, or flat in shape.
Automatic Linear 6-Heads Gravity Filling Machine
This machine is equipped with 6 specially designed non-drip stainless steel nozzles. Complete with a 16 feet stainless steel conveyor with 3-1/4″width stainless steel table top chain and a 1.0 HP variable speed drive unit for the feeding of the containers to the filler.
A product buffer tank of 60 litres capacity at the lower portion of the machine with high/low level sensor and stainless steel pneumatic rotary actuator product inlet valve. Together with this buffer tank is a stainless steel centrifugal pump for the supply of product to the overhead stainless steel tank which will delivered the product by gravity through a pneumatic actuated control valve and to the filling nozzles.
Application
- Most suitable for filling products into soft bottles of rectangular or flat in shape.
Monobloc
Automatic Monobloc Filling & Capping Machine
RF 12/1 “G” “V”
Filling
- Filling system can be supplies in several versions depending on the product to be bottled.
- RF ’G’, gravity filler (for products of low viscous and flowable).
- RF ‘V’, high vacuum filler with indirect recycling of product returning from air pipe (for hot filling viscous products such as ketchup, sauces etc.)
- Delivery of product into the central tank by means of a pump fitted with a solenoid valve.
- Nozzles with a system of filled level adjustment and bottle mouth centering devices
Capping
- Capper can be adapted for all commercially available types of caps.
- Capper for applying screw caps with pre-threaded caps, safety caps, ROPP, plastic caps.
- Mechanical cap sorter fitted at top of covering sending cap through the feed chute to the capping head.
Automatic Rotary Gravity Vacuum Filling & Press-on Capping Machine
RF 16/4″P” “GV”
Filling
- Composed of 16 specially designed filling nozzles for high vacuum filling.
- The infeed pump is suitable for the kind of product to be treated and complete with pneumatic actuated control valve.
- Vacuum is created with oil-less vacuum pump to assist suck back of excess product in the bottle to the vacuum intercepting tank and back to the product tank by pump.
Capping
- An automatic rotary type with 4 heads screw-on capper specially designed for soft cork press-on caps.
- The whole capping system is supplied by AROL of Italy.
- Specially designed mechanical caps sorter assisted by pneumatic to sort the caps in the correct position and send through a stainless steel chute and to a specially designed head for ‘Pick & Place System’.
- Capping head is driven by an electric motor and the descending movement is operated by cam system.
- Built-in ‘Pick & Place’ system for positive capping of soft cork press-on cap onto the bottle.
Rinsing
Automatic Rotary Bottle Rinsing Machine
“BR AUTO” is fully automatic and is manufactured either with 10, 16 or 20 heads to give an hourly output between 2000 and 8000 bottles. This machine will handle containers of any size, shape and capacity.
Features
- Infeed by feeding scroll and starwheel to the neck gripping turnover unit and place over the injection jet with effective rinsing.
- The injected solution can be disposed to drain or re circulated as a closed cycle via filtration.
- Neck gripper plastic insert to suit the bottle mouth configuration, quick and simple change over.
- Adjustable rinse and drain time.
- No bottle no rinse.
Automatic Linear Bottle Rinser
An automatic linear type of bottle rinsing machine for rinsing internal section of bottles with sterilizing solution or product. Empty bottles are fed by conveyor to the bottle gripping station. Once the sensor detected bottles in position, the bottle gripper will grip all the bottles and the whole station will rotate 180 degree backward so that all the bottles will be in invert position with bottle mouth station on top of the spray nozzles.
Once all the bottles are in placed, spraying process will start and the spray time is adjustable to each individual requirement. Spraying will stop once it reaches the present spraying time, dripping of excess water in the bottle is allowed according to the time setting for the dripping.
The gripping station will turn 180 degree forward to its original home position at the end of the dripping time. Automatic gating system will move the 6 rinsed bottles out from the gripping station and the rinsing process continue with the new bottles.

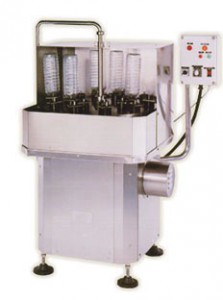

Semi-Automatic Rotary Rinser
Equipped with 20 Nozzles for rinsing internal section of bottles with sterilizing solution or product. Bottles are inserted upside down into the bottle neck catch or holder manually. The rotary disc with 20 holders are designed to suit the bottles. This rotary disc with the bottles inverted will arrive to the product injection. The injection phase has 2 stages. At the end of the second injection stage, the product dripping will be recovered by canalisation and discharged from the machine.
Features
- Bottles will be replaced manually after the dripping phase.
- The rotary disc turning speed is adjusted by a knob on the control panel.
- A stainless steel pump is mounted inside the machine.
- The stainless steel tank has a capacity of 80 liters and 10”
- Polycarbonate Filter Cartridge to recycle the product to the rinser.
Capping

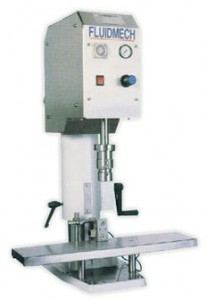

Semi – Automatic Single Head Screw-on Capper
CAPPA SV2
A semi-automatic single head type capping machine specially designed to treat plastic screw-on caps onto various type and size of bottle.
Features
- Capping chuck heads are made to suit type of cap profile.
- Capping head with adjustable torque adjustment device.
- Capping head with adjustable height to handle different height of containers.
- Up/Down stroke of the capping head is operated by pneumatic cylinder.
- Automatic Linear Single Head Pick & Place Screw Capping Machine
CAPPAMATIC 2500IL
The Pick & Place capping system has been designed to offer the industry a versatile, low maintenance and user-friendly solution to a wide variety of capping requirements. It is ideally suited to environments that require frequent product changeover and a high degree of flexibility.
Features
Adjustments are carried out by means of quick release levers, hand wheels and pneumatic gauges.
- An adjustable cap chute caters for most cap designs and types.
- 2 liters container can easily be handled at high speed.
- Positive pickup of caps.
- Virtually eliminates cross threading or cap misplacement.
- Ensure accurate orientation of caps in relation to containers.
- PLC controlled – assists machine functions and simplifies its operation, uses simple ladder logic familiar to most service electricians.
- Automatic Single Head Screw-on Capping Machine
CAPPAMATIC “S”
An automatic single head-capping machine specially designed to treat plastic screw-on caps onto all types of bottle.
Features
- Capping heads are specially studied for screw-on caps.
- Mechanical cap sorter positioned and oriented the caps, then send the caps to the neck of the bottles through a special chute.
- Advanced technical design of the capping drive head allows the application of screw-on caps of various sizes and types to be applied.
- Capping chuck heads are made to suit each cap type profile.
- Regulation of cap application torque by adjusting the infeed air pressure enable the capping even of soft PVC bottles.
Ozone
Our Ozone technology uses a patented the cold plasma corona discharge for ozone generation and it is recognized as the leading technology for chemical-free sterilization and removal of natural and manmade water contaminants. The newly understood hazards associated with chlorination of water, and the resultant move of the FDA to ban chlorine from primary water treatment, leaves ozone as the only desirable and practical method for water purification. This patented process has vaulted our ozone technology within the industry, worldwide, as one of the leading producers of ozone system for commercial, industrial and residential water treatment.
Notable customers of Ozotech, Inc. products include: Pepsi Cola, Coca Cola, McDonalds, Sea World, Colex Colenta, Minnesota Zoo, Holiday Inn.
Water Treatment - Residential
Roasis
The new Roasis system is a complete re-thinking of the traditional R.O. system. The benefits of a completely integrated design includes better appearance, convenience and durability. Ease of use and great design are sure to make the Roasis system the best choice for the consumer!
Features:
- 50GPD Purified Water
- Patented Manifold that provides tough, compact design and high pressure durability, insures a long, safe and leak-free life.
- Integrated Quality Pump that is mounted out of sight to improve looks and completely automatic operation.
- Continuous Water Monitor that sends audible alarm to alert the user of declining water quality.
- Easy to Maintain with its snap on fittings, the filters, membrane and flow restrictor can be replaced literally in seconds.
- Designed for foolproof reassembly.
System Dimensions: 249mm(W)x 195mm(D) x 472mm (H)
Alkaline Filter
H2O Plus Quick Change Filtration is a Point-Of-Use residential drinking water system that made filter replacement easier even without the use of any tools!
The alkaline filtration system features 3 stages of filtration process. Afterwards, it will pass through the UV system that will sterilize your drinking water making it safe and potable.
The filters remove insoluble impurities as well as soluble impurities such as floating particles, pesticides, chlorine, improves taste, color and turbidity. This system includes a Calcite Cartridge filter that will increase the pH of your drinking water making it base or Alkaline.
The UV (Ultraviolet) system inactivates the bacteria, viruses and other micro organisms by interfering with their DNA and RNA reproductive cycles.
Treatment Stages:
- 1st Stage: 10” Polypropylene Sediment
- 2nd Stage: 10” Calcite Cartridge
- 3rd Stage: 10” GAC Cartridge
- 4th Stage: UV Sterilizer
Features:
- Quick change cartridge filters
- Metal bracket
- Standard long reach brass faucet
- PE tube 1/4” x 3”
- Brass water feed adapter
- UV Inlet/Outlet is 1/4”
- Flowrate: 1GPM
Reverse Osmosis
Reverse Osmosis is also known as hyper filtration and it is commonly used to purify water by removing impurities to improve the quality of water.
Reverse Osmosis uses a semi permeable membrane. This process uses pressure to force water through a membrane and retains the solute on one side and allows the pure water to pass to the other side. More formally, it is the process of forcing water from a region of high solute concentration through a membrane to a region of low solute concentration by applying pressure. It utilizes a process known as cross flow whicCommercial-ROh allows water to skim the membrane surface continuously that creates a self cleansing action. As fluid passes through the membrane, some of it continues downstream. This causes to reject unwanted particles salts, bacteria, proteins, sugars, dyes, dyes, and other contaminants.
Contact Us
H2O Plus Water Treatment Company
Address: H2O Plus Building, 144 Mindanao Avenue, Project 8, Quezon City 1106
Phone: +63 2 928 6632 | 926 3892
Fax: +63 2 926 3893
E-mail: info@h2oplustreatment.com
Find us on Google Maps
