Celadon Park by Ayala Land
Celadon Park Condos
Celadon Park - a vibrant high-rise community for urban achievers - shares the same leisure lifestyle as that of adjacent Celadon Residences. This is most evident in the condominium's leisure club facilities that address the relaxation and recreation needs of its residents. Amenities like a meditation garden, swimming pools with wooden lounge deck, secluded massage areas and a gym and fitness center, evoke a sense of well-being.
Expected date of turnover: Tower 1 - 1st quarter of 2011
Location
View Celadon Manila and other projects within the vicinity in a larger map
Amenities
- 25-meter swimming pool
- Children’s pool
- Lounge pool
- Wooden lounge deck
- Viewing deck
- Barbeque and Grill area
- Garden sitting area
- Private massage cabanas
- 700 sqm. club function rooms
- Basketball / multi-purpose court
- Gym and fitness center
- Exercise lawn (yoga, tai-chi)
- Game room
- Children’s activity area
- Meditation gardens
- Penthouse gardens
Building Unit Map
Building Map (click to enlarge)
Building Cross Section
Unit Floor Plans
Typical Floor Plan
Unit Finishes
| Specifications | For All Bedrooms | ||
| Bedroom Flooring | Laminated Flooring | Red Oak | |
| Hallway Flooring | Ceramic Tile | Sta. Cruz Yellow | 400 x 400 mm |
| Living/Dining/Kitchen Flooring | Ceramic Tile | Sta. Cruz Yellow | 400 x 400 mm |
| Master T&B Flooring | Ceramic Tile | Tokyo Loft | 300 x 300 mm |
| Master T&B Wall | Ceramic Tile | Tokyo Loft | 300 x 300 mm |
| Second T&B Flooring | Ceramic Tile | Tokyo Loft | 300 x 300 mm |
| Second T&B Wall | Ceramic Tile | Tokyo Loft | 300 x 300 mm |
| Kitchen Countertop | Laminate Finish | Graphite Nebula | |
| Kitchen Cabinet | Laminate Finish | Acero Luce | |
| Bedroom Closet | Laminate Finish | Warm White Stipple | |
| Baseboard | Wooden Baseboard | Stained Finish | 1 x 3 in |
| Wall | Plastered Cement Painted Finish | ||
| Ceiling | Concrete Stained Finish | ||
| Plumbing Fixtures | Ceramic Fixture | Pizzaro Series | |
Photo Gallery

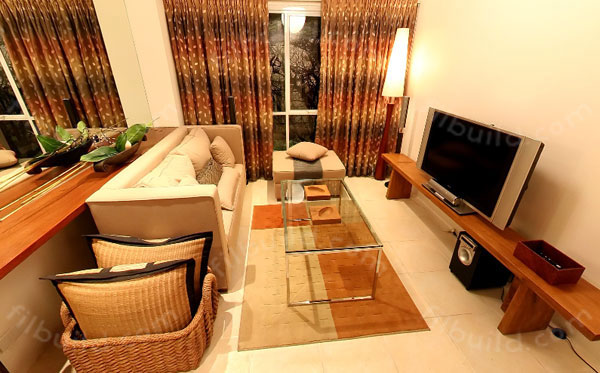

One-Bedroom

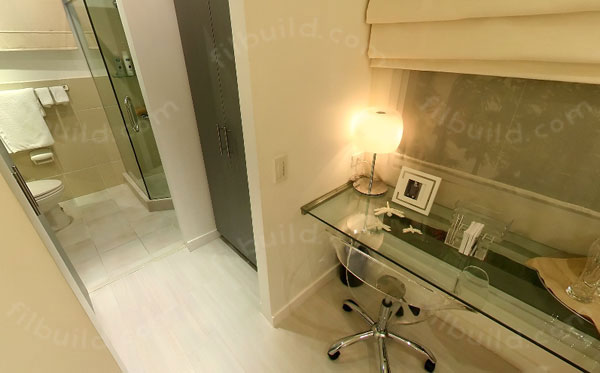

Two-Bedroom
Three-Bedroom
Structural
- In compliance with local and international building design codes and references (NBC, UBC, NSCP and ACI)
- Foundation is a combination of bored piles, mat foundation at services core and spread footinq at column areas
- Special Moment Resisting Frame (SMRF) system at the perimeter of the structure and shear wall system
- Geotechnical/Foundation analysis by Dr. Salvador F. Reyes
- Structural Design by Aromin, Sy & Associates, Inc.
- Structural Design Review/Audit by DCCD Engineering
- Conducted Structural Design Review/Audit to ensure life safety & code compliance
Electrical
- Normal Power: Supplied by the Manila Electrical Company (MERALCO)
- Convenience outlets - 220 volts, 180 watts average
- With provision for CATV and Telephone Lines
- Guest Annunciator System - Audio only
- Transformer - 4-1000 KVA
Plumbing
- Water supplied by Maynilad Water System Inc (MWSI)
- Water is stored in a centralized underground cistern
- Water is then pumped to an overhead tank and is distributed to the individual units
- Provision for a multi-point water heater for Masters bedroom and common T&B
- Underground sewage treatment plant will be provided to process waste water. This will be connected directly to the existing drainage system in the area.
Mechanical
Units
- Provision for installation of Kitchen Range Hood
- Provision for split-type air-conditioning for all units
- Natural Ventilation in all rooms/areas
Common Areas/Corridors
- Mechanical ventilation at main lobbies
- Natural ventilation at lift lobbies and corridors
- Natural ventilation at Parking levels
*Natural ventilation reduces operating costs for units and common areas.
Fire Protection and Alarm System
- In compliance with NFPA 12, 13, 20 and local fire code of the Philippines
- Automatic sprinkler system provided at corridors, common areas and inside residential units.
- Underground Fire Storage Tank
- Fully addressable smoke detection system at residential and common areas
- Provision of heat detector at kitchen area
- Pressurization at Fireman's Lift and two fire escapes for each tower.
Air-Conditioning
| Unit | Aircon | |
| 1-Bedroom | Master's Bedroom | 1 unit split type |
| Living/Dining Area | 1 unit split type | |
| 2-Bedroom | Master's Bedroom | 1 unit split type |
| Bedroom 1 | 1 unit split type | |
| Living/Dining Area | 1 unit split type | |
| 3-Bedroom | Master's Bedroom | 1 unit split type |
| Bedroom 1 | 1 unit split type | |
| Bedroom 2 | 1 unit split type | |
| Living/Dining Area | 1 unit split type | |
Emergency Power
| Lighting | Outlet | Refrigerator | |
| 1-Bedroom | 2 - 50 watts | 1 Outlet (TV) 110 watts | 1 unit - 8 cu.ft. frost-free |
| 2-Bedroom | 4 - 50 watts | 3 Outlets (TV, Stereo, Electric Fan) 630 watts | 1 unit - 8 cu.ft. frost-free |
| 3-Bedroom | 4 - 50 watts | 3 Outlets (TV, Stereo, Electric Fan) 630 watts | 1 unit - 8 cu.ft. frost-free |
| Retail Area | 100% Backup | ||
| Admin Loads | 100% Backup |
Elevators
- Two (2) passenger elevators and one (1) service elevator per tower
- Passenger elevators can accommodate 900 kgs. or 13 persons
- Service elevator can accommodate 1150 kgs. or 17 persons
- Average speed of elevator - 2.0m/sec
- Average waiting time of 48 seconds
Consultants
Mechanical - R.J. Calpo & Partners
Structural - Aromin & Sy + Associates
Sanitary and Fire Protection - NBF Consulting Engineers
Electrical - R.A. Mojica & Partners
Quantity Surveyor - Davis Langdon & Seah Phils., Inc.
Project Manager - Asian Technicon Managers and Consultants, Inc.
Landscape - ADI Limited Inc.
Project Architect - Aidea Philippines, Inc.
Façade - ALT Cladding, Inc.
Elevator - Meinhardt Philippines, Inc.
Structural Review - DCCD Engineering, Inc.
About the Developer
Ayala Land, Inc. is the real estate arm of the Ayala Corporation, one of the Philippines' biggest and well-established business conglomerates. Established in 1834, Ayala Corporation consists of five major subsidiaries and three affiliates that are leading players in the areas of banking, insurance, automotive, real estate, telecommunications, information technology and water utilities.
Its real estate interests are consolidated under its full-owned subsidiary, Ayala Land, Inc. whose projects include:
- Development of prominent high-end and middle-market residential subdivisions and condominiums;
- Construction of high rise commercial and residential buildings;
- Conversion of vast tracts of land into industrial business parks; Development and management of shopping centers;
- and Management of cinema, hotel and entertainment operations.
Through its over 50 years of experience in real estate, Ayala Land, Inc. has earned a reputation as the country's leading real estate developer. It is primarily credited for Makati City's metamorphosis from grasslands back in the 1940's into the premiere business district it is today. To this day, it is the preferred business location of the most prestigious corporate, commercial and residential addresses, site of many international hotel chains and home to exclusive high-end residential areas developed by the Ayala group over the past 50 years.
